Hi all
and yes it is the time or we begin to return to the shop and or ideas and experiences of the season take forms materialize.
Here is the latest in the series.
This sluice will have as objective the working current low and the bucket in calm waters, but gold deposit areas.
For now the active part is over and will be tested this weekend on Placer with little slope.
the baby plug, 1 m long, 30cm wide, cheeks of 10 cm, integrated feet and carrying handle. the ability to change quickly riffle module to fit for slow current low and another 'normal'.
I went on a quarter round aluminium, used to finish tiles anodized. 3dimensions 12.5, 9, and 6 mm high.
all on a set of 4 mats (rubber fine streaks, small anti slip carpet tiles, a big other tiles, pvc mesh and expanded metal plate).
Here is the construction: plate alu 1.00mX0.5m folded in the corner sheet for my channel of 30cm X1.00m
the rest is from the cutting and scaling
cutting of the riffles


cutting mats


the puzzle


detail of the riffles: 1X12.5mm, 2X9mm, 2X6mm and 1X9mm


the mouth with the blocking of the carpet fine streaks


mounting of the riffles on the module


It passes the router to remove the shoulder of angles


Here is a ready to Assembly module


integration of the feet and the carrying handle


Visual of the 2 modules current normal left and current low right


modules are easily interchangeable with the butterfly nut


all is ready to go with the 2 modules in the sluice


Here is my latest creation
If anyone are interested do not hesitate to contact me.
Module work in a bucket is in the Court's development, requires a lot of testing to have good flow and control of the volume of water.
Bye
Yann

Hi all,

In my project, I had the construction of a sluice gold trapp, type Bazooka and here is the tool, the length of the table is 90 cm for a pinching of 36cm at the beginning to finish 24 cm des sides height is 16 cm in marine plywood.
The principle is to manage or change the pipes tubes of liquefaction in the box of concentration based on the strength of the current..., you can use it in the river or plugging a water supply, for the upper part, with a diffuser and the lower part a distributor for 3 pipes...
Here are the pictures

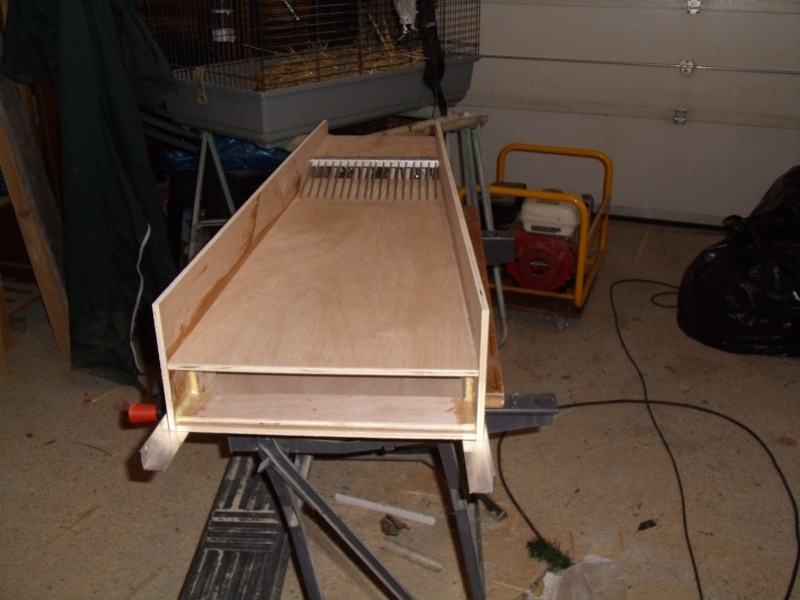

an overview:

[img] http://i43.servimg.com/u/f43/11/93/22/25/baz0110.jpg ;[/ IMG]

[img] http://i43.servimg.com/u/f43/11/93/22/25/baz0310.jpg [/ IMG]

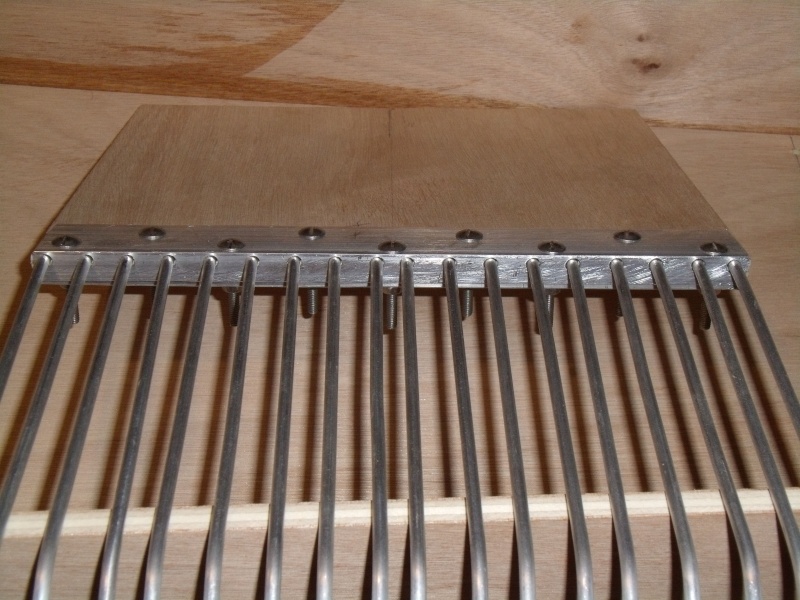

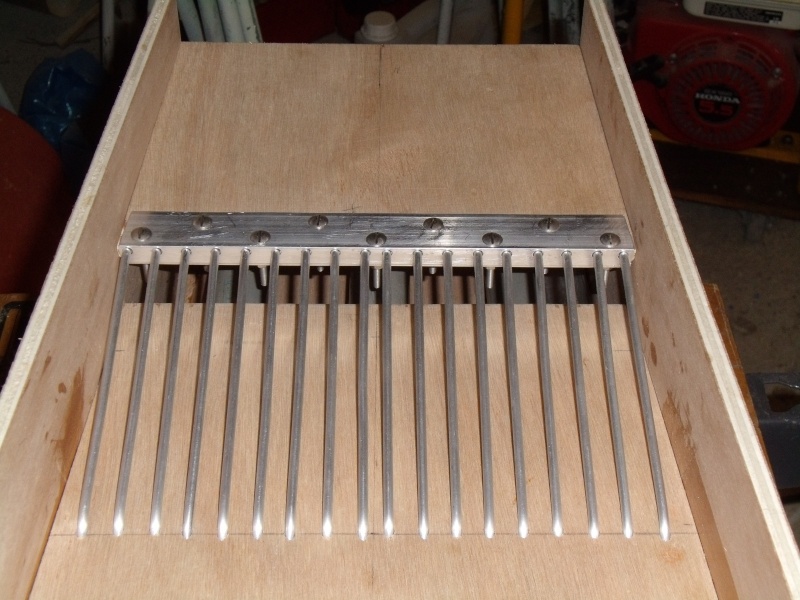

the details of the grizzly:

[img] http://i43.servimg.com/u/f43/11/93/22/25/baz0210.jpg [/ IMG]

[img] http://i43.servimg.com/u/f43/11/93/22/25/baz0510.jpg [/ IMG]

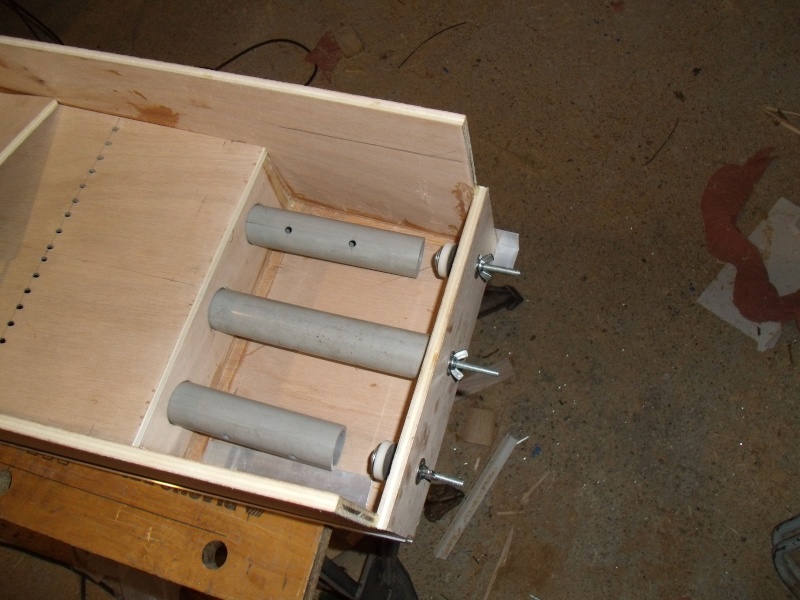

the box sealed liquefaction to avoid loss of particles:

[img] http://i43.servimg.com/u/f43/11/93/22/25/baz0610.jpg [/ IMG]

with tubes that can be changed

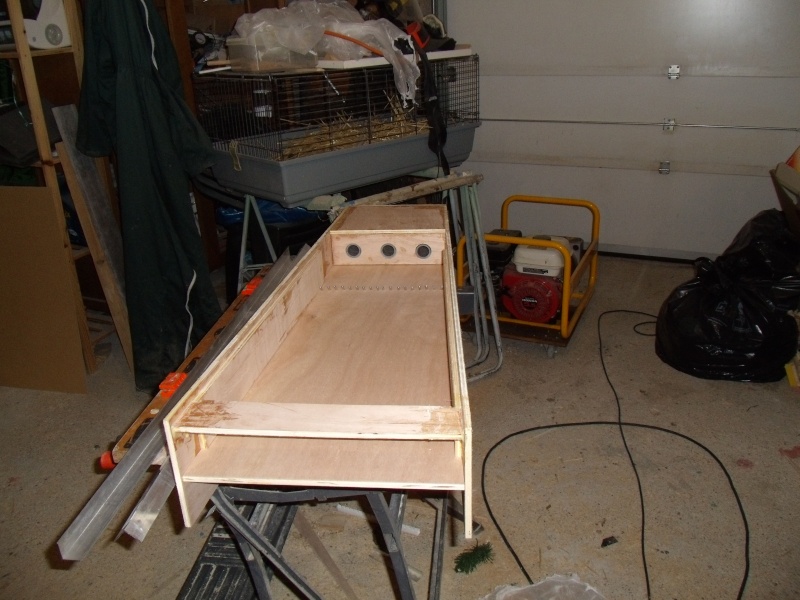

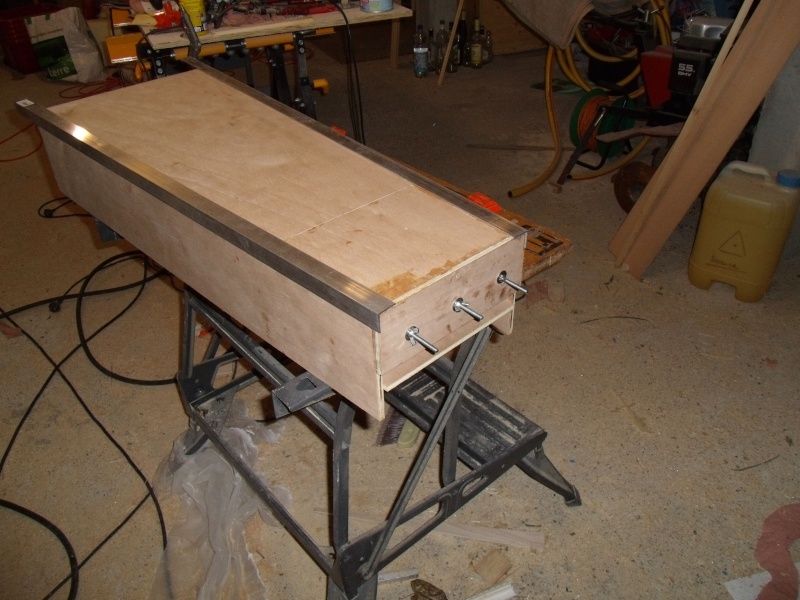

the lower part with the plate that will be removable for access to the tubes of liquefaction:

[img] http://i43.servimg.com/u/f43/11/93/22/25/baz0410.jpg [/ IMG]

[img] http://i43.servimg.com/u/f43/11/93/22/25/baz0810.jpg [/ IMG]

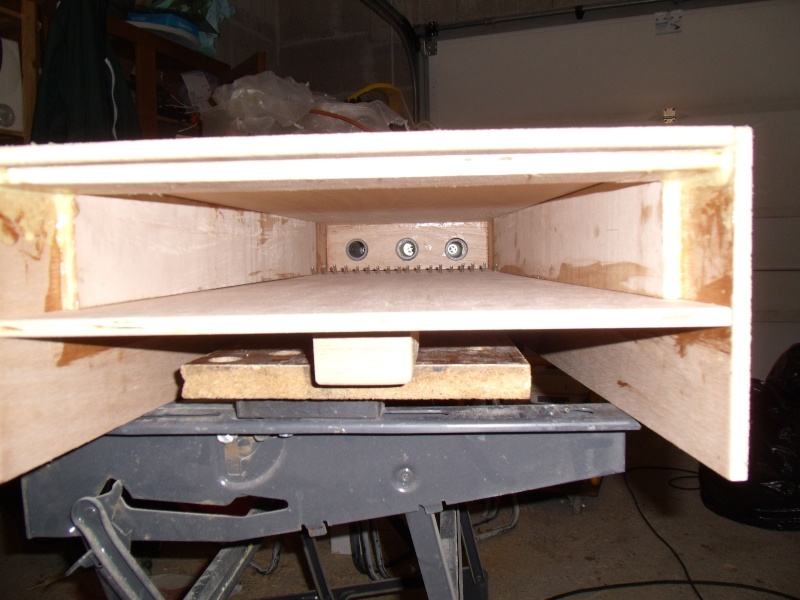

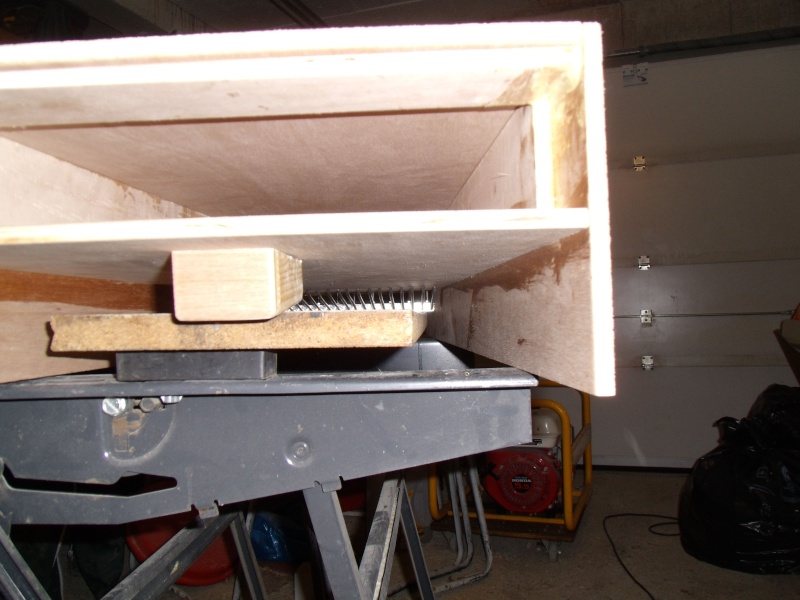

vision of the sight of the box lower side tube and side grid:

[img] http://i43.servimg.com/u/f43/11/93/22/25/baz0910.jpg [/ IMG]

[img] http://i43.servimg.com/u/f43/11/93/22/25/baz0710.jpg [/ IMG]

It is during mounting, sticking to the polyurethane after a glue all fixed time, a mouth pore polyurethane, a nicely shape, finish sanding will be epoxy-resin with a canvas of glass mainly on the top

the establishment of the elements of the grid built into the upper platform and by mechanical stress on the bottom shelf.

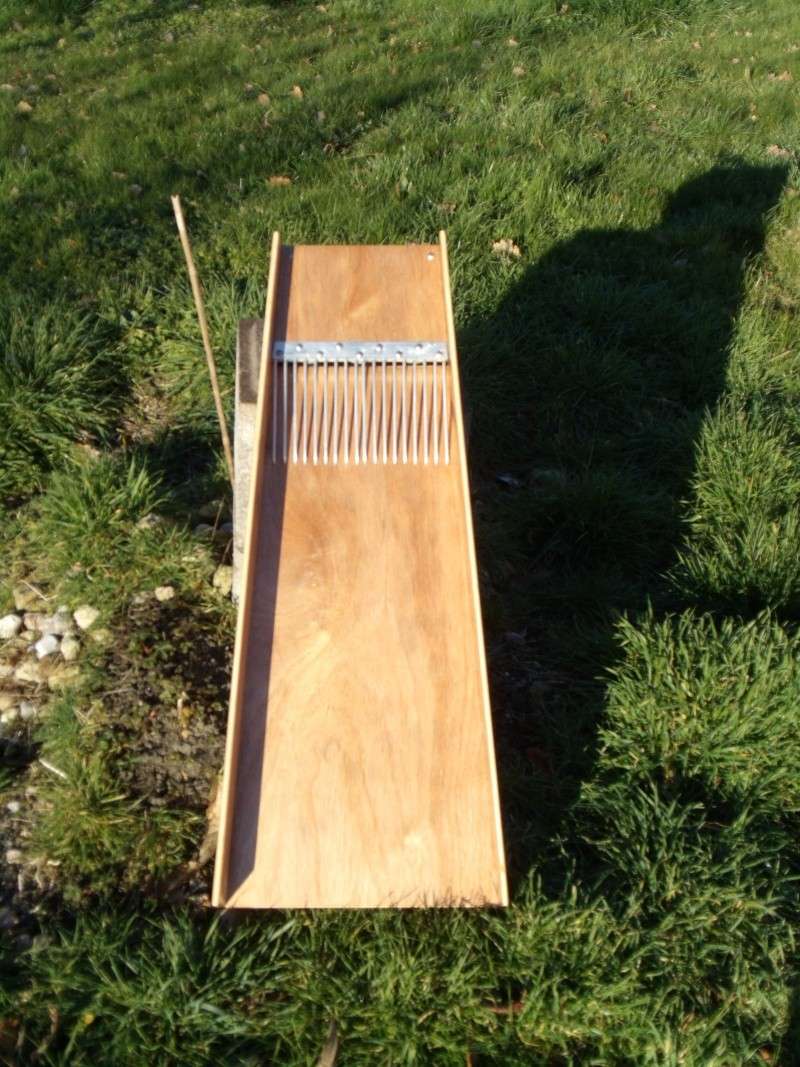

Here are the shots of the complete hub prototype version.

[img] http://i43.servimg.com/u/f43/11/93/22/25/gedc0310.jpg [/ IMG]

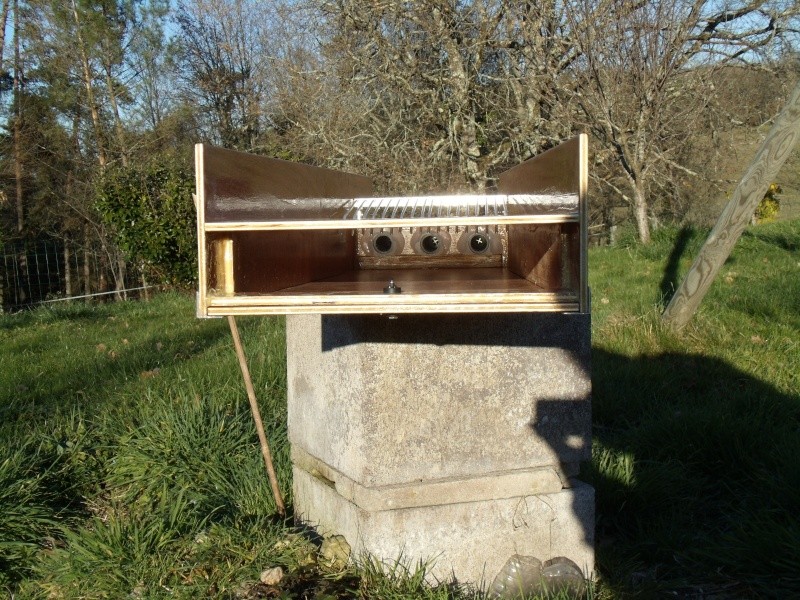

the detail seen from the entry mouth

[img] http://i43.servimg.com/u/f43/11/93/22/25/gedc0311.jpg [/ IMG]

detail of the grid

[img] http://i43.servimg.com/u/f43/11/93/22/25/gedc0312.jpg [/ IMG]

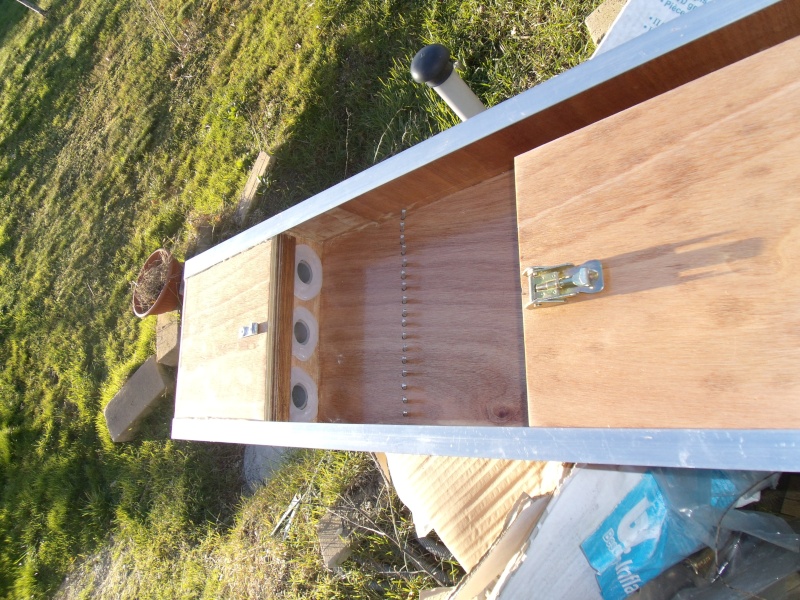

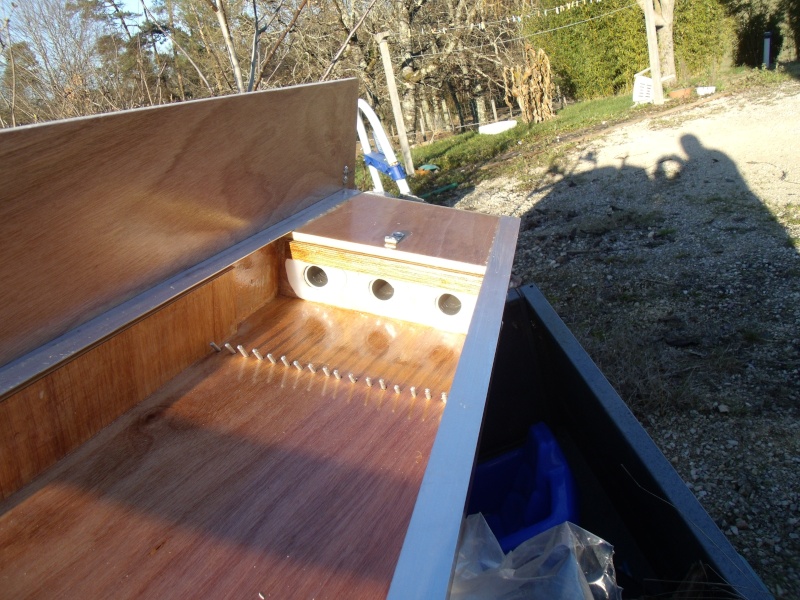

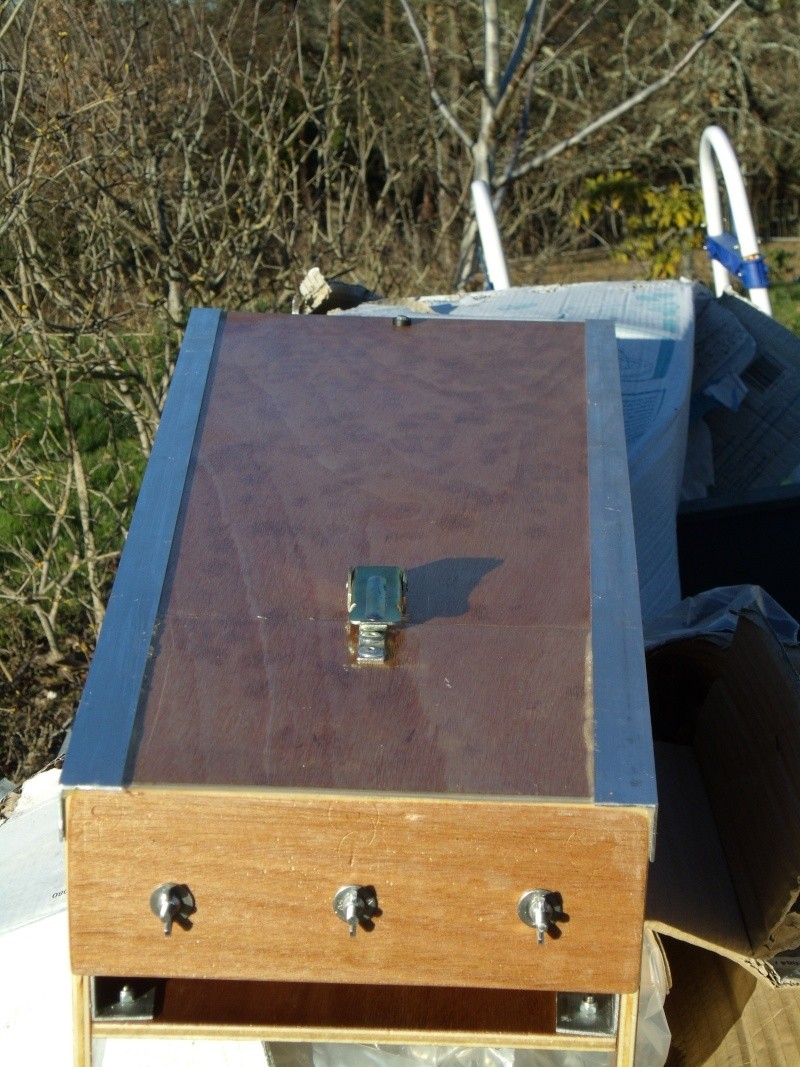

the bottom of the hub to intervene on the drilled tubes

[img] http://i43.servimg.com/u/f43/11/93/22/25/gedc0313.jpg [/ IMG]

[img] http://i43.servimg.com/u/f43/11/93/22/25/gedc0314.jpg [/ IMG]

[img] http://i43.servimg.com/u/f43/11/93/22/25/gedc0315.jpg [/ IMG]

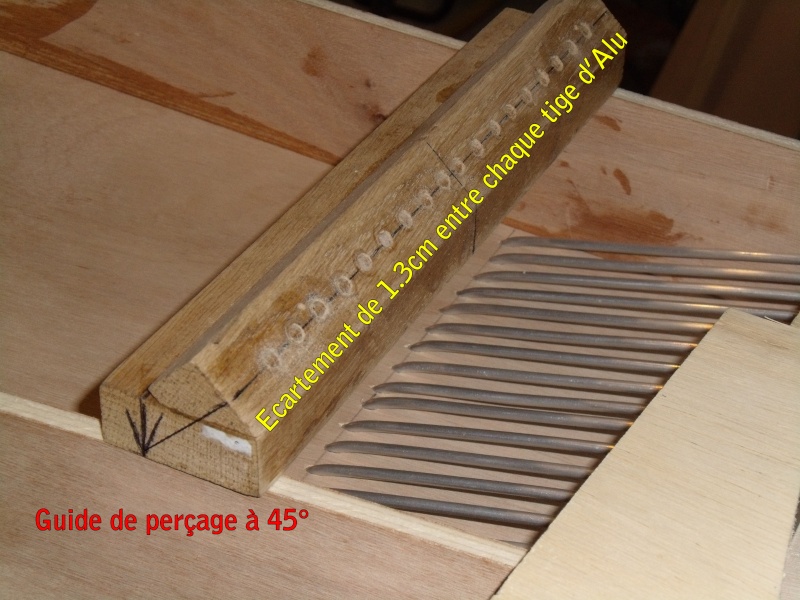

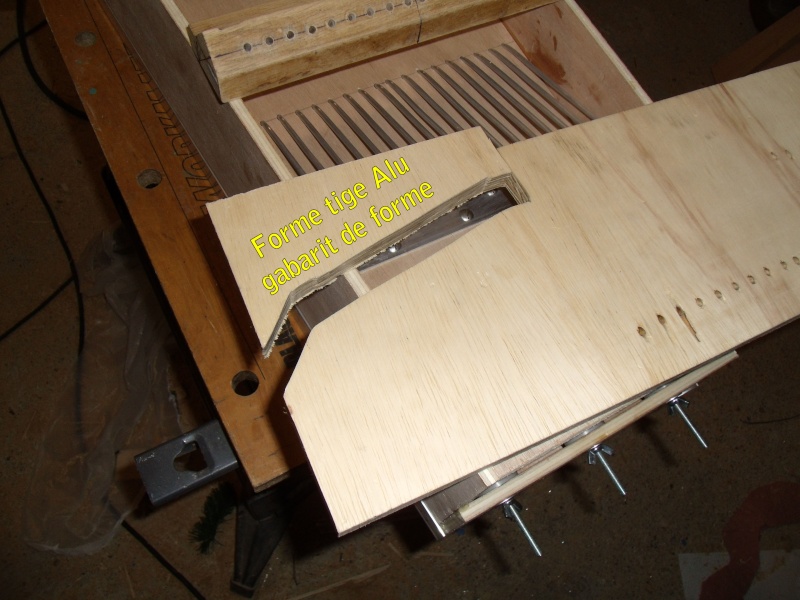

and here's the tools developed for drilling and forming the grid

[img] http://i43.servimg.com/u/f43/11/93/22/25/guide012.jpg [/ IMG]

[img] http://i43.servimg.com/u/f43/11/93/22/25/guide011.jpg [/ IMG]

so here is this tool completed, ready to be put into service in the spring

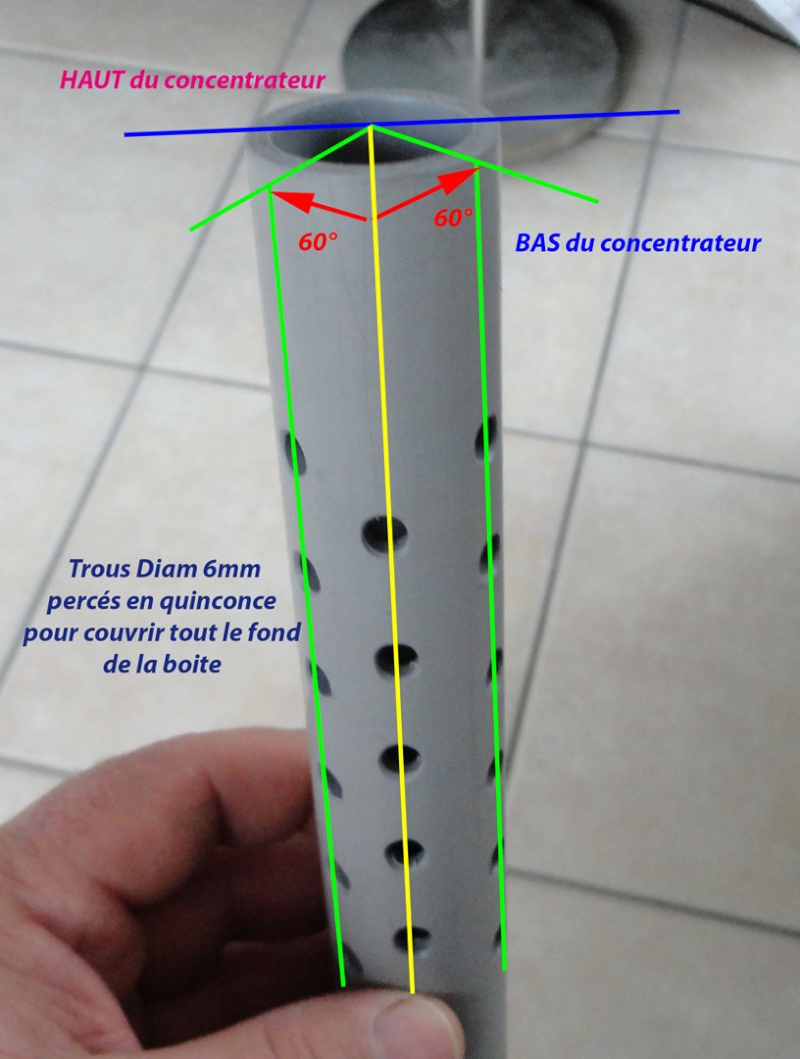

Detail of the tubes from the box of liquefaction:

[img] http://i33.servimg.com/u/f33/11/93/22/25/tubefl10.jpg [/ IMG]

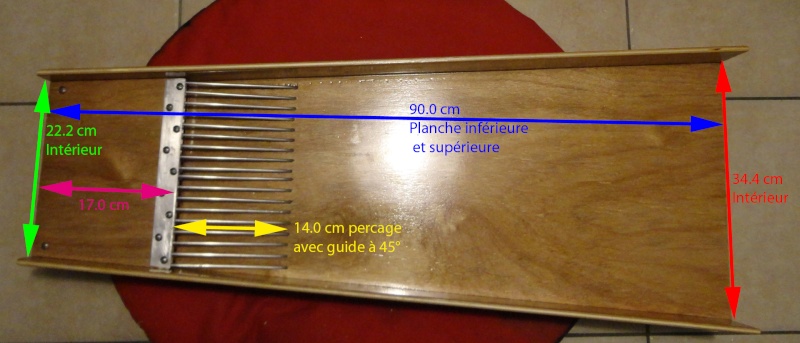

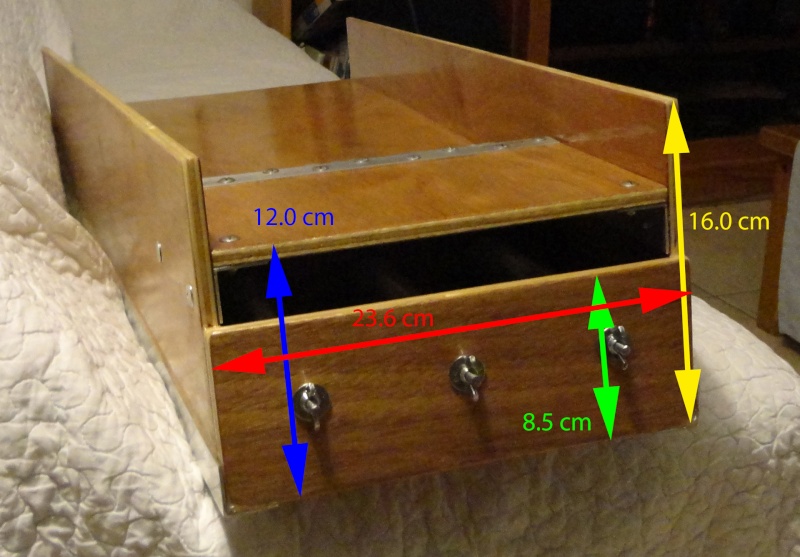

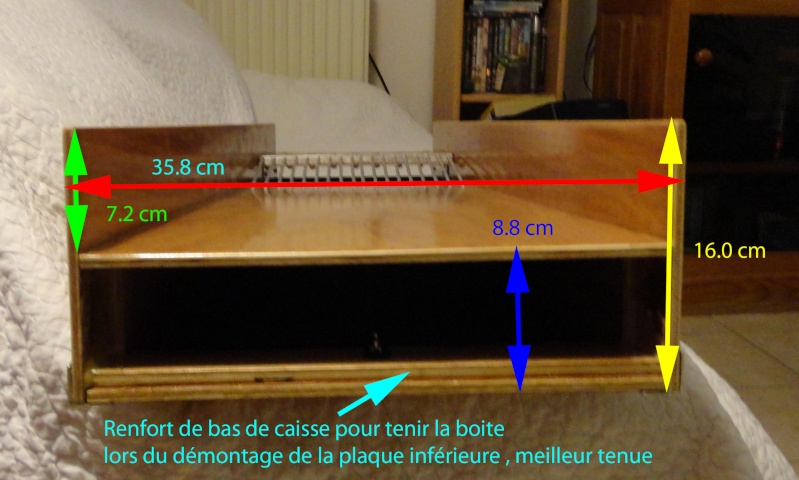

Here are the measurements of the sluice:

[img] http://i76.servimg.com/u/f76/11/93/22/25/bazook10.jpg [/ IMG]

[img] http://i76.servimg.com/u/f76/11/93/22/25/bazook11.jpg [/ IMG]

[img] http://i76.servimg.com/u/f76/11/93/22/25/bazook12.jpg [/ IMG]

[img] http://i76.servimg.com/u/f76/11/93/22/25/bazook13.jpg [/ IMG]

Here are the videos that explain the principle of operation and cleaning of the sluice

https://www.YouTube.com/watch?v=IlKmPslbKe4

https://www.YouTube.com/watch?v=l5qdo5S9YWM

https://www.YouTube.com/watch?v=YusvRqDKW_Q

And here is my gold trapp in opération

https://www.youtube.com/watch?v=szt5gEg-qbc&list=UUsC4KcVAT_4Dog3tFafjW4Q

Yann
